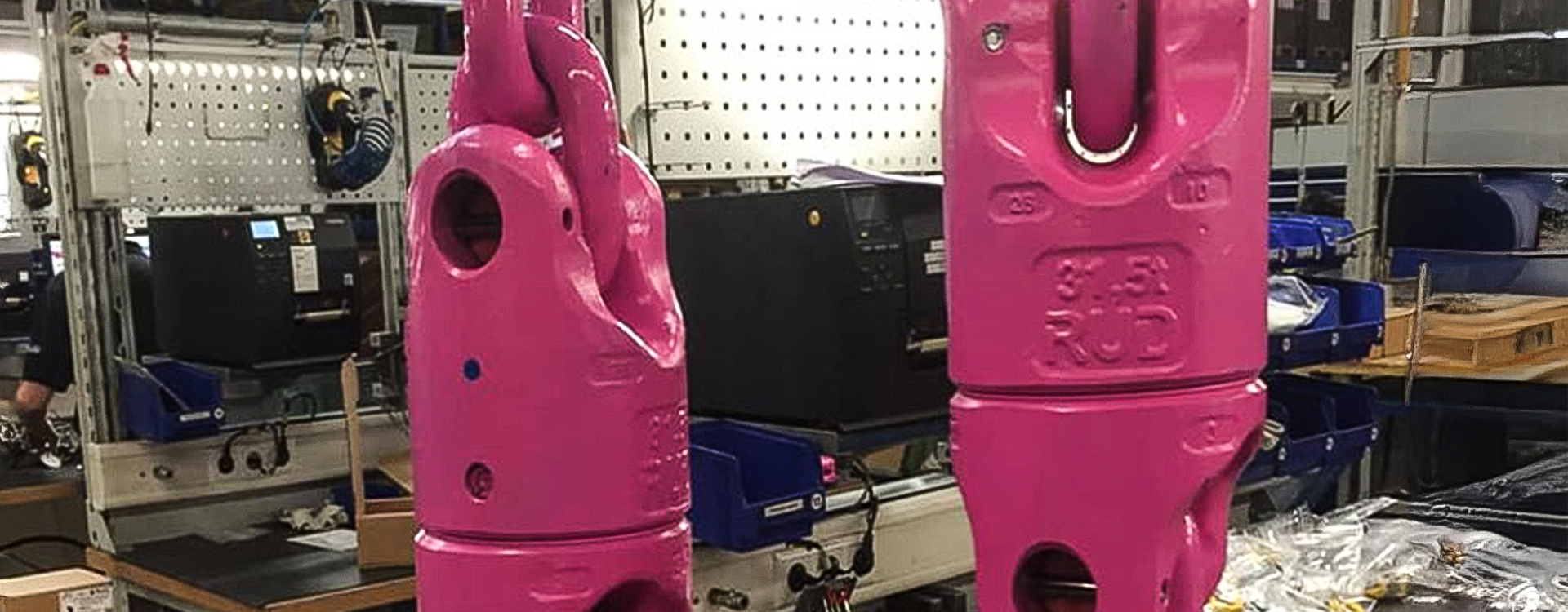

RUD Swivel elements.

Swivelling elements avoid rotating of the chain strand.

What do you do if the chain is twisted? The DGUV (German Social Accident Insurance) has a good reason for stipulating that twisted chains must not be loaded. They can suddenly untwist when lifting and the load can drop down with a jerk. This can result in damage to the chains (until they break) or to the load. Therefore, lifting means must be untwisted before use.

This costs time and effort. Therefore, you finish much more quickly with RUD swivel elements. As an extra element in the chain, they take care of the untwisting completely automatically during the lifting process – or prevent the twisting from the outset. As they have ball bearings, they can rotate under load. However, please note that swivel elements are not suitable for permanent operation under full load.

Would you like to know more about RUD swivel elements for lifting chains?



Contact us now

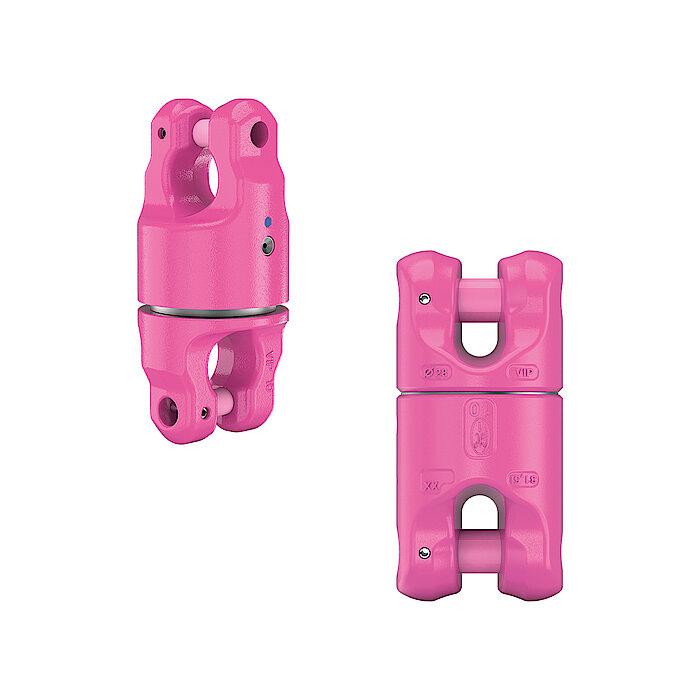

VIP Universal swivel.

With a ball bearing, which enables rotation under load. Patented clevis system making universal connection possible, can be loaded in all directions. Shortest combination options. Assemble only with RUD approved VIP chains and eyebolt components:

  • RUD VIP Cobra eye hook VCÖH.
  • Oval-Link PP-B for RUD PowerPoint.

Note: The VIP chain connection is non-mix-up. During assembly of the ring components, special attention must be made to the correct WLL assignment.

  • Completely pre-assembled with connection bolt and tensioning sleeve.
  • Can be used for chain lifting means from 4 – 28 mm.
  • Not suitable for permanent operation under full load.



Get more Information

RUD ICE chains.

ICE stands for Innovative Chain Evolution. RUD ICE chains are lifting means of Grade 12 and represent a (r)evolutionary advanced development in the lifting means segment. Their colour code is ICE-pink (traffic purple).

RUD ICE chains have been tested and certified by the certification authority of the committee of metal and surface treatment of the employers’ liability insurance association Metal North South (BGM) and also approved with the quality grade stamp "D1-12" (D=Degree of Quality / 1=Manufacturer RUD / 12=Grade). RUD ICE-120 chains and components have been designed for 20,000 changes in load (tested with 50 % overload) in accordance with DIN EN 818 and 1677 for dynamic load.



Get more Information
