Quick-Mount Lifting Points.

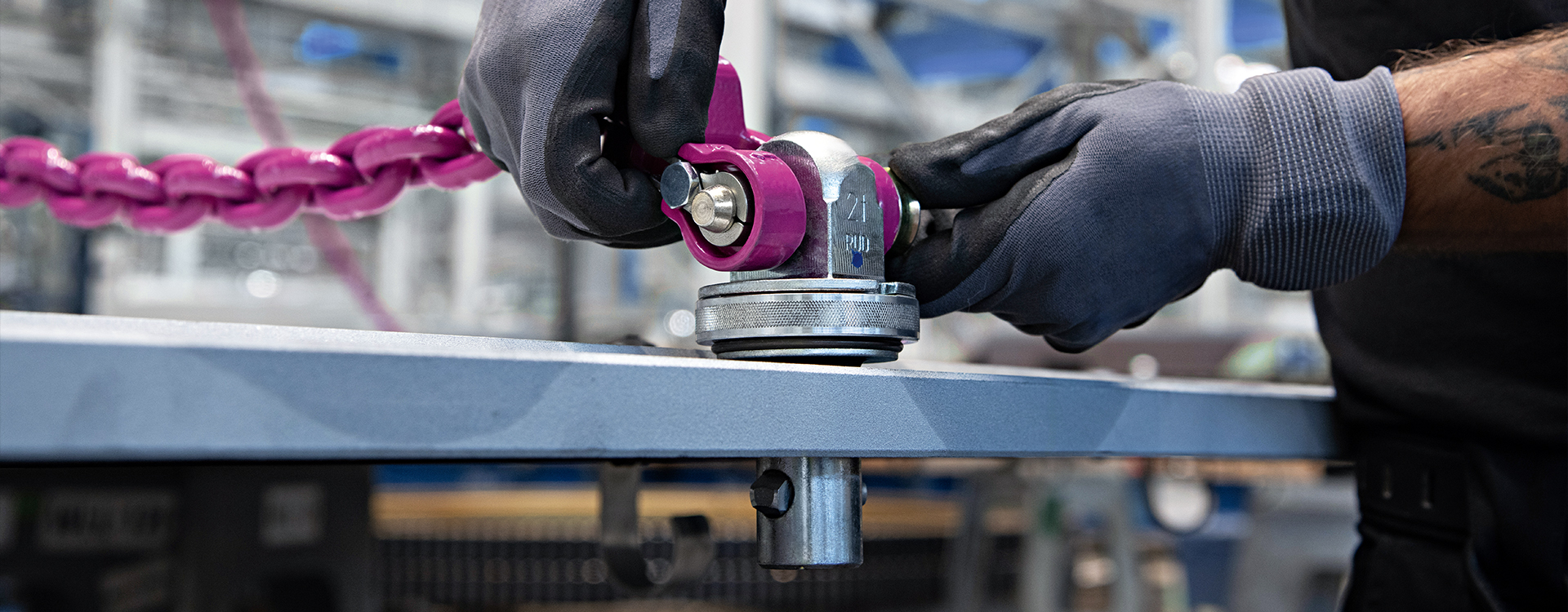

PIP-RAPIDO: Turn, insert, click, done.

With the PIP-RAPIDO quick-mount lifting point series, RUD brings a new level of speed and efficiency to modern lifting technology. These innovative, tool-free lifting points are engineered for scenarios where the same or similar components need to be lifted repeatedly – such as large flanges with through or undercut holes. Their snap-in anchor design eliminates the need for threaded connections or lock nuts, making setup and removal exceptionally fast.

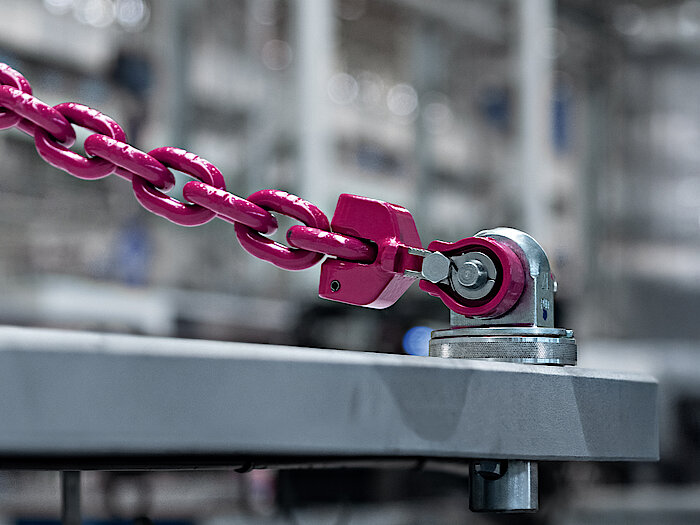

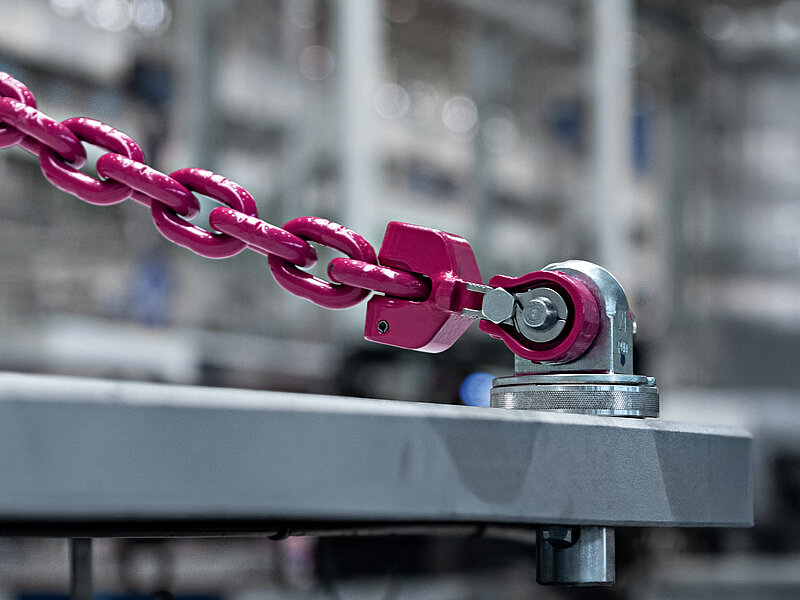

Product features.

  • Quick, tool-free mounting.
  • Up to 80% time savings compared to screw-on lifting points.
  • Ideal for through-holes (e. g. flanges) with hard-to-reach rear sides – and with undercut holes.
  • Greater flexibility with tolerance ranges of 2 mm (diameter) and 10 mm (length) without compromising load-bearing capacity.
  • Drill diameters: 30-50 mm.
  • Lengths: 16-100 mm.
  • WLL: 0° – 45° -> 4.2 t.

Save Up to 80% Time with Tool-Free Installation.

From wind energy to powertrain components, the PIP-RAPIDO quick-mount lifting points are designed to save up to 80% of handling time compared to traditional screw-on models. No tools are needed: simply unlock, insert, and lock into place. The intuitive handling of the temporary lifting lugs significantly reduces setup time, especially in applications involving repetitive lifting tasks.

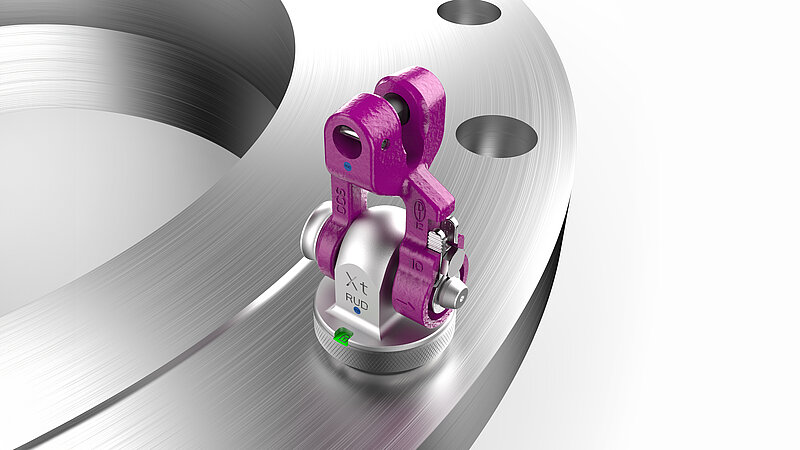

Easy and safe to mount.

Another advantage of the PIP-RAPIDO is dimensional flexibility. These reusable rigging hardware components are adaptable in both length and diameter (within defined tolerances), meaning they do not require an exact fit in the mounting hole. Depending on the variant, the Working Load Limit (WLL) can reach up to 5 tons, making these lifting points both fast and powerful.

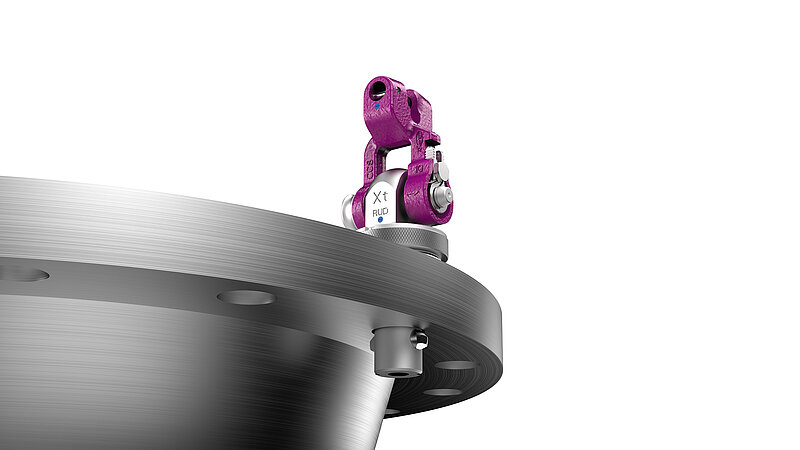

No Access? No Problem.

Its innovative plug-in mechanism makes the RUD PIP-RAPIDO the perfect lifting point wherever space constraints make it difficult or impossible to reach a nut during assembly or disassembly. It is also the ideal solution for holes with undercuts. Thanks to its functionality and exceptional flexibility, the RUD PIP-RAPIDO provides significant added value, even when accessibility is good.



Download the brochure now

Here’s how it works: the PIP-RAPIDO in action.

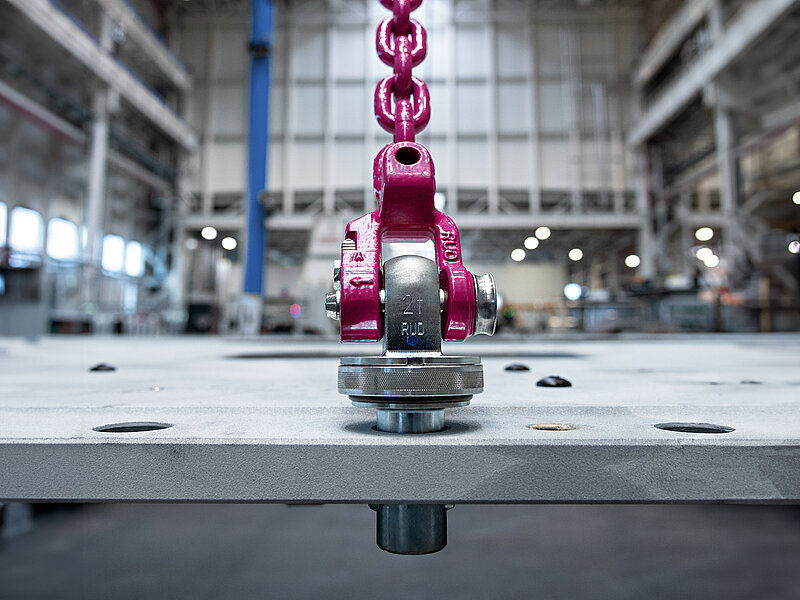

Perfectly combined – for maximum time savings and handling benefits.

Two innovations – one complementary benefit: Our first clickable clevis shackle – CCS-FASTLOX – is the perfect complement to the PIP-RAPIDO plug-in lifting point. Insert, click, secure, done.



Find out more about the CCS-FASTLOX today.

FAQs

Quick-mount lifting points – also referred to as plug-in lifting points – are specialized tool-free lifting points that can be installed and removed quickly without any additional hardware or equipment. Designed for use with through or undercut holes, they’re ideal for recurring lifting tasks involving similar components, such as large flanges or heavy machinery parts. Their innovative locking mechanism allows for safe lifting without the need for securing nuts, offering a major advantage over traditional bolt-on lifting points.

Industries such as wind energy, turbine manufacturing, gearbox production, and motor assembly particularly benefit from the use of RUD quick-mount lifting points. These temporary lifting lugs are engineered for lifting large, heavy parts where access is limited or where bolting is impractical. In flange stacking, for example, conventional bolted systems may not be accessible due to space constraints, making the snap-in anchor mechanism of quick-mount lifting points the preferred choice.

RUD PIP-RAPIDO quick-mount lifting points can reduce assembly and disassembly time by up to 80% compared to standard bolted models. Since no tools are required, setup becomes much faster – particularly in operations that involve repetitive lifting of similar components. This leads to noticeable improvements in workflow efficiency and labor costs.

RUD offers a wide selection of quick-mount lifting points in various lengths and diameters, ensuring flexibility for different applications. Depending on the design, the WLL can reach up to 5 tons. The adjustability of length and diameter allows the hardware to fit into different hole sizes within the defined tolerances, which is particularly valuable when working with components of varying dimensions.

No special tools are required. These tool-free lifting points are built for fast, intuitive handling. The operation is simple: unlock, insert, and lock. This user-friendly design makes them ideal for both one-time lifts and reusable rigging hardware applications that involve frequent movement and reassembly.

More information on the PIP-Rapido?

You’ll get it. Jump to our catalog and get to know this product in detail and in all available variants or sizes.



I want to know it all!
