PP-S / PP-B / PP-VIP.

POWERPOINT®-Star / -eye connection / -VIP-chain connection.

The POWERPOINT®-Collection is a universal solution for a boltable lifting point. The products are equipped with double ball bearings and thus also take over the rotatable WLL 90° to the bolt-on direction.

The POWERPOINT®-Star lifting point offers a wide WLL range from 0.63 t to 8 t. The PP-S model provides a universal connection for various suspensions, while the PP-B features an eye connection for hook suspension. For direct chain connections, the PP-VIP model is available.

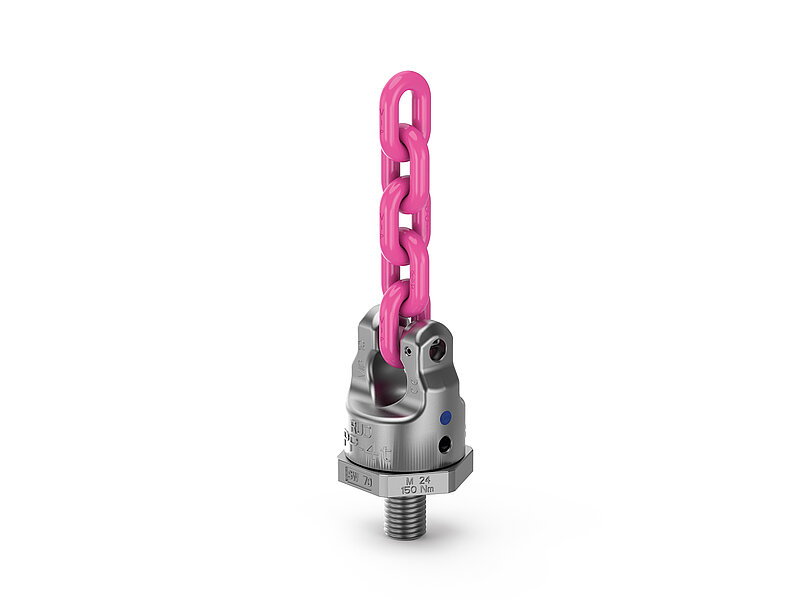

Variant PP-VIP.

A VIP-chain of the corresponding size can directly be connected to the clevis. This allows the shortest construction connection between two parts.

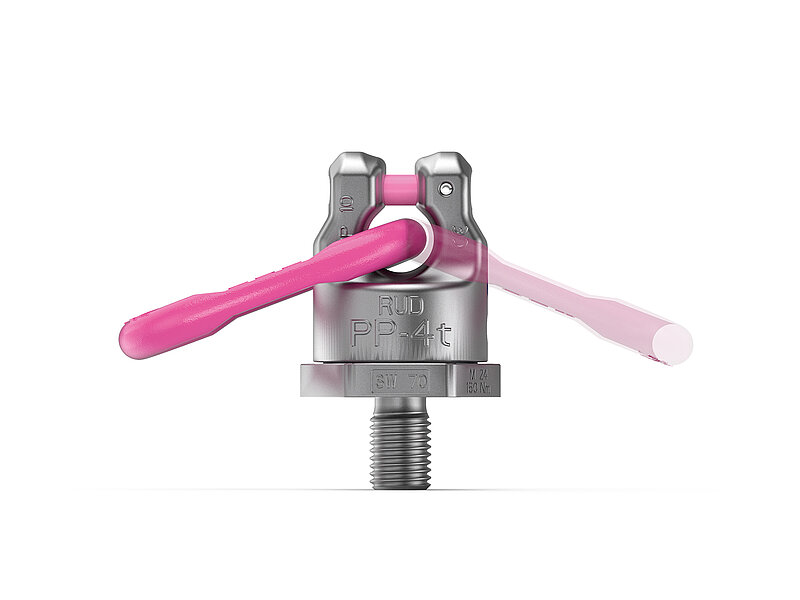

Variant PP-B.

The patented clevis design allows the connection of various RUD-specific components, e. g. a suspension link to attach a hook or shackles.

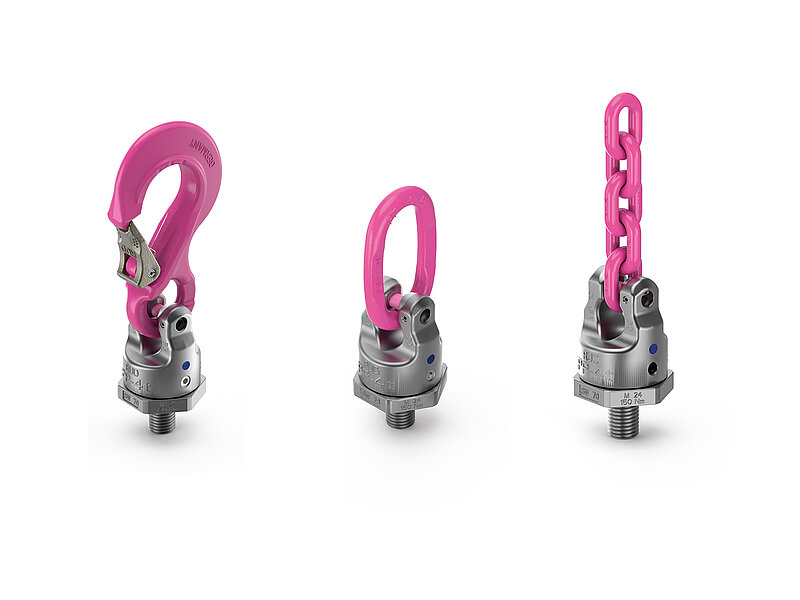

Variant PP-S.

With the POWERPOINT®-Star, thanks to the movably mounted hook, all common lifting means such as round slings, wire ropes, chains and hooks can be universally connected (e. g. without shackles). It is the ideal variant for the designer, as he does not know in advance with which lifting means will be used to lift his construction. In addition, the large distance from the suspension protects the load from damage.


All versions are rotatable by 90° to the bolt-on direction under WLL and include variable thread lengths, reducing kinking with a cardan joint design.

Product features.

  • Large WLL range 0.63 t – 8 t.
  • PP-S: universal connection with hook for ring suspensions, round slings, wire ropes, hook suspensions.
  • PP-B: eye connection for hook suspension.
  • PP-VIP: direct chain connection.
  • So-PP-S, So-PP-B, So-PP-VIP: variable thread lengths.
  • Rotatable 90° to the bolt-on direction under WLL.
  • Lowest kinking possibility due to cardan joint.
  • PP-VIP, So-PP-VIP: universal and non-mix-up clevis connection for easy construction with chains, hooks and eye.
  • PP-S, So-PP-S: The shape of the hook tip prevents hinging in small openings and the WLL on the hook tip.
  • PP-S: Robust forged safety latch.
  • 360° rotatable, 230° pivotable.
  • Double ball bearing for tilting, rotating and turning under load.
  • Universal, non-mix-up VIP connection for chains, hooks and eyes.
