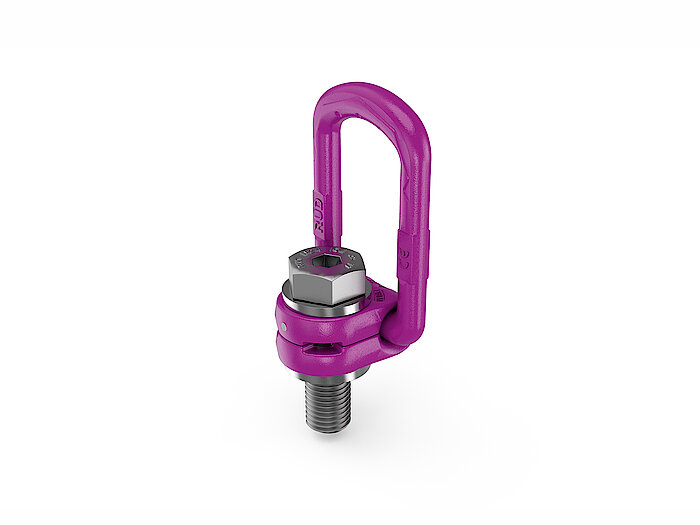

VLBG-PLUS.

VIP-Load ring thread PLUS.

The VLBG-PLUS VIP-Load Ring Thread PLUS offers a wide WLL range from 0.63 t to 20 t, making it versatile for various lifting needs.

It features a captive but exchangeable ICE-Bolt made of patented steel, providing enhanced corrosion protection and suitability for deep temperature usage. A clamping spring reduces noise and maintains the ring in the desired position, allowing for easy hinging and a compact design when folded.

Load rings such as the VLBG-PLUS are characterised by their extremely low construction with a pivoting suspension ring and an eccentric force introduction. An important advantage: They automatically align themselves correctly in the respective loading direction.

Product features.

  • Large WLL range 0.63 t – 20 t.
  • Captive but exchangeable ICE-Bolt made of patented steel up to size M24 with special corrosion protection Corrud-DT. Safe deep temperature usage; improved toughness meaning higher bending strength and lower wear occurrence.
  • The clamping spring achieves noise reduction and keeps the suspension ring in the desired direction; thereby simple hinging of the lifting means is possible or a flat design in the folded state.
  • DNV certification from size M30.
  • Suspension ring adjustable in force direction.
  • Comprehensive range of threads.

Product variants.

  • VLBG-PLUS / VLBG.
    Metric thread.
  • VLBG-PLUS / VLBG.
    Metric chosen length / metric fine thread in variable length.
  • VLBG-Z.
    UNC inch thread / UNC inch thread in variable length.

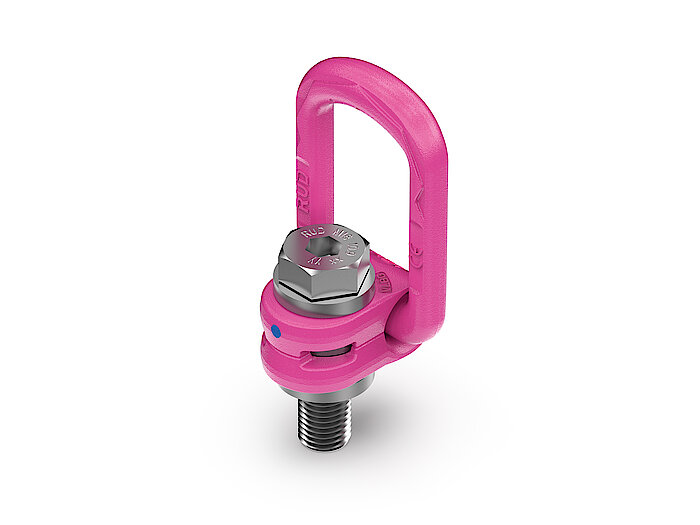

VLBG 10.9.

VIP-Load ring thread with 10.9 bolt.

  • Large WLL range 0,3 t – 4 t.
  • Captive but exchangeable 10.9 bolt.
  • The clamping spring achieves noise reduction and keeps the suspension ring in the desired direction; thereby simple hinging of the lifting means is possible or a flat design in the folded state.
  • DNV certification for sizes M8–M24.
