VRBG.

VIP-Load ring thread.

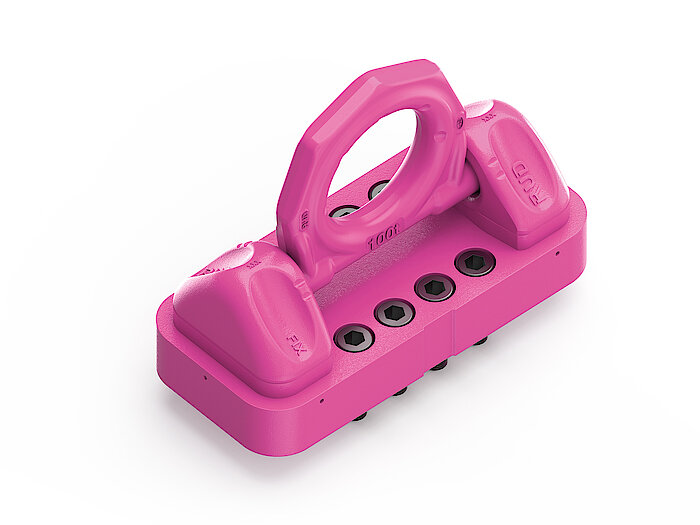

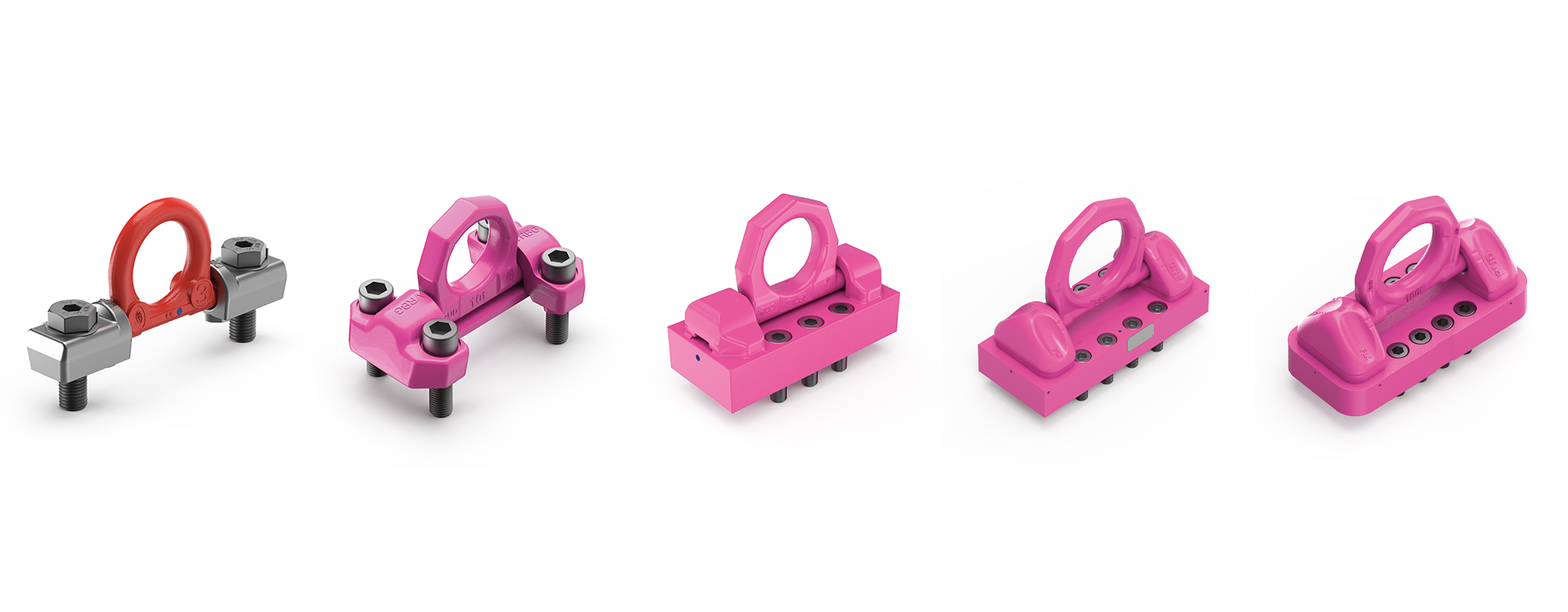

If it makes sense to introduce force into the structure via several bolts in a way that is gentle on the component, there are several options depending on the load weight. The lifting points of the VRBG / RBG product family offer a swiveling ring lug, which ensures a low installation height.

Depending on the load capacity, 2 – 8 crack-tested bolts are used for fastening. A load 90° to the ring plane is possible for all variants. The working load limit (WLL) ranges from 3.0 t to 100 t, thus enabling a high-performance solution even for high requirements.

Product features.

  • Large WLL range 3 t – 16 t.
  • Split force introduction thanks to multiple point fixing.
  • Bracket can be pivoted through 180°.
  • WLL possible up to 90° in load ring plane.
  • Clear indication of the minimum WLL for all loading directions.
  • Split force introduction through several points, going easy on the component.
  • WLL up to 16 t.
