VWBG-V / VWBG.

VIP-load ring thread VARIO / VIP-load ring thread.



VWBG-V.

On the VWBG-V (V = Vario) the threaded part consists of a bolt (ICE-Bolt). This enables a higher WLL and the installation of a bolt of any length with a selectable thread type.



VWBG.

The VWBG load ring with ball bearing allows vertical rotation under full load. Tipping and flipping actions are therefore possible and safe. Even loading 90° (rectangular) to the ring plane is possible. This load force occurs, for example, when a plate must be pivot from the vertical into a horizontal position. Further advantages are a relatively small contact surface and the larger clearance of the suspension to the bolt-on surface. This means that even with a 90° loading, the attached hooks cannot damage the load.

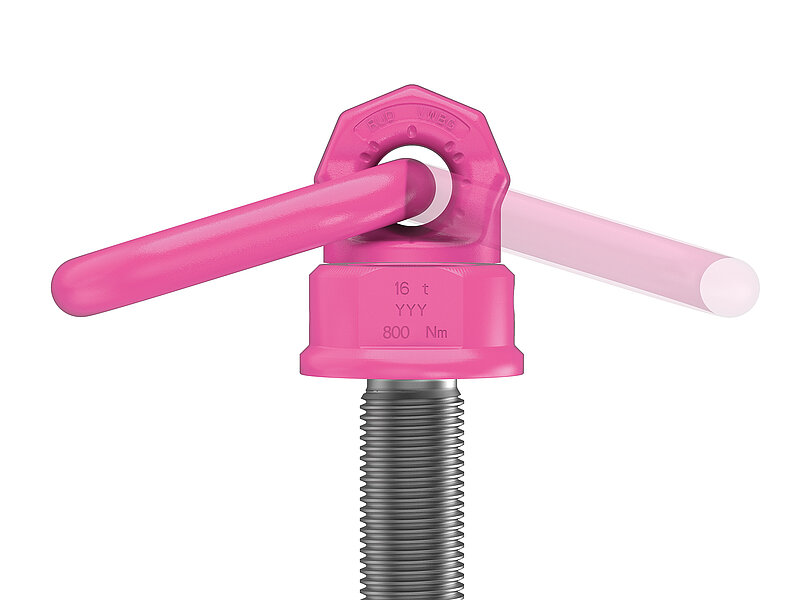

Product features.

  • Large WLL range 0.3 t – 5 t / 6 t – 50 t.
  • Clear indication of the minimum WLL for all loading.
  • directions. Higher WLL by optimized attachment or application.
  • Rotatable 90° to the bolt-on direction under rated WLL.
  • Variable bolt lengths available for use in threaded and through holes.
  • VWBG-V: Non-removable special bolt (do not use unsuitable standard screws).
  • VWBG-V: RUD bolts with special corrosion protection Corrud-DT.
  • Large clearance between the bolt-on surface and load to prevent damage.
  • 360° rotatable, 230° pivotable.
