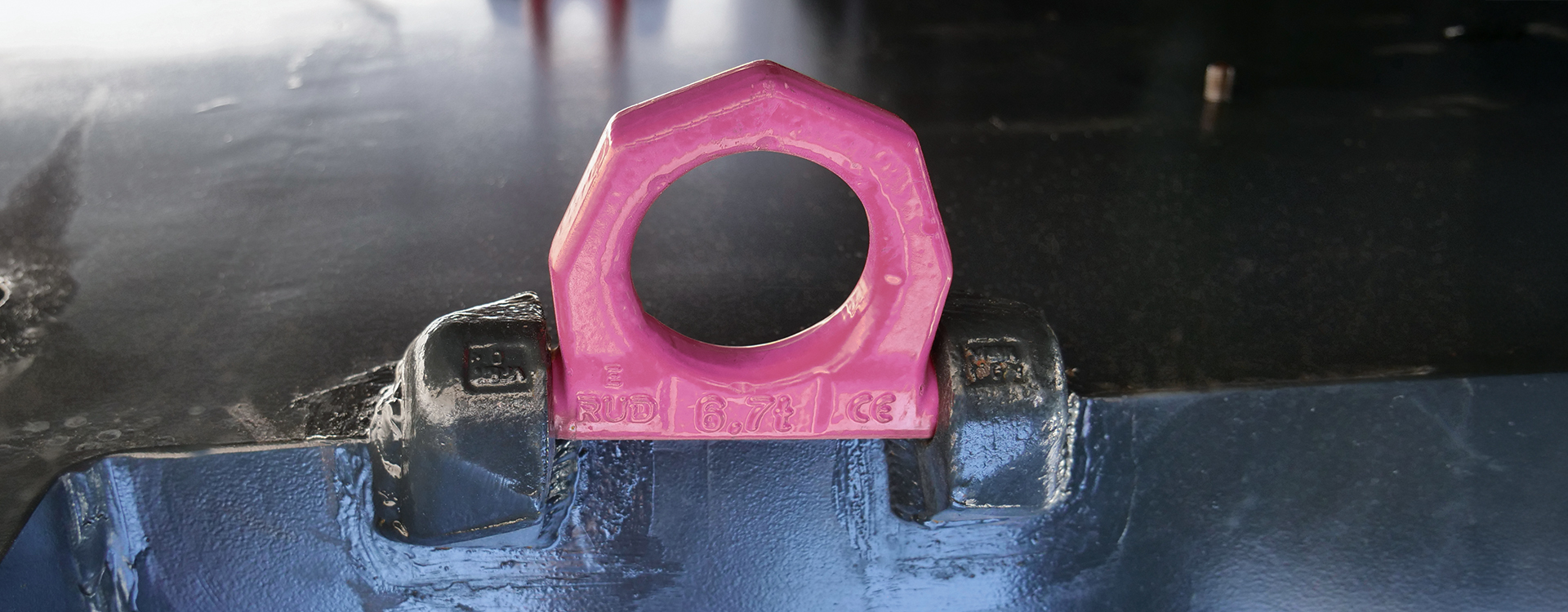

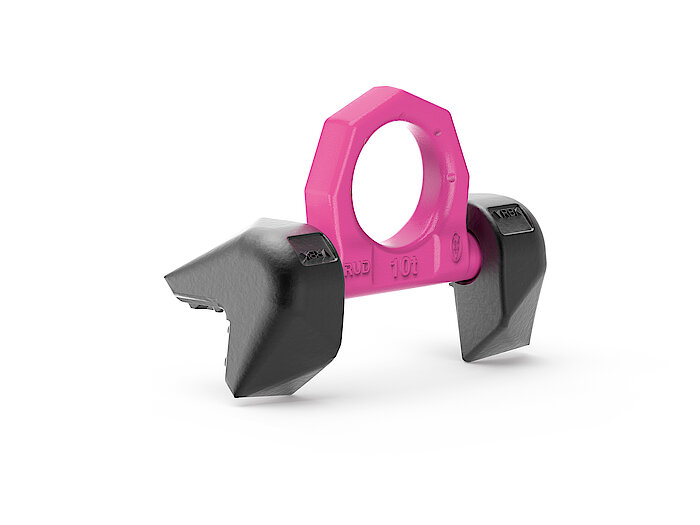

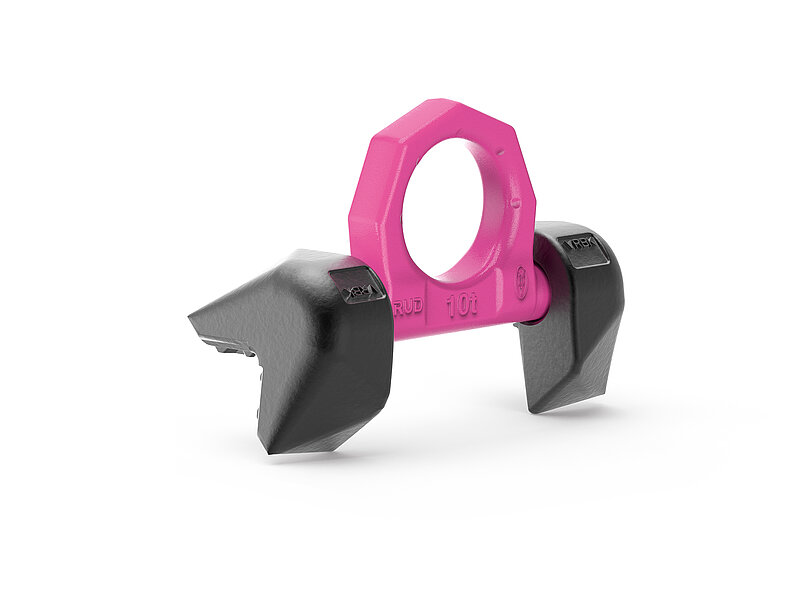

VRBK-FIX.

VIP-Load ring edge FIX.

The VRBK-FIX lifting points offer a versatile solution with a wide WLL range from 4 t to 50 t. They feature multiple point fixing for split force introduction and a 270° pivoting suspension ring, allowing WLL up to 90° in the load ring plane.

The design includes a circular fillet weld to prevent contact or crevice corrosion. A clamping spring ensures noise reduction and maintains the suspension ring's alignment.

Product features.

  • Large WLL range 4 t – 50 t.
  • Split force introduction thanks to multiple point fixing.
  • Suspension ring pivots 270°.
  • WLL possible up to 90° in load ring plane.
  • Thanks to the weld arrangement (circular fillet weld), no contact/crevice corrosion can occur.
  • Patented wear markings for easy determination of wear.
  • The clamping spring achieves noise reduction and keeps the suspension ring in the desired direction.

More information on the VRBK-FIX?

You’ll get it. Jump to our catalog and get to know this product in detail and in all available variants or sizes.
