VRBS.

VIP load ring for welding.

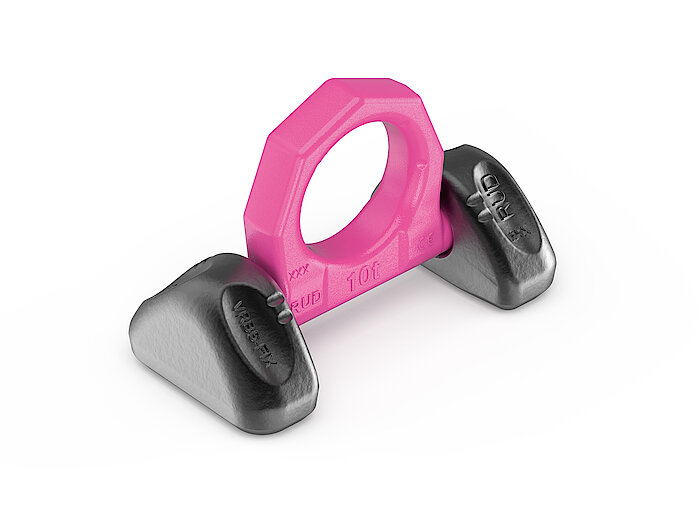

The VRBS VIP load ring for welding offers a large WLL range from 4 to 31.5 tons. It features distance knobs on the weld-on block to ensure proper spacing for root welding, and the block itself is made from a material that is easy to weld.

The suspension ring pivots 180°, allowing for WLL usage up to 90° in the load ring plane, and split force introduction is achieved through multiple point fixing.

Product features.

  • Large WLL range 4 t – 31.5 t.
  • Clear indication of the minimum WLL for all loading directions.
  • Patented wear markings for easy determination of wear.
  • Distance knobs on the weld-on block for the necessary distance for root welding.
  • The weld-on block is forged from a material that is easy to weld.
  • Corresponds with the test criteria of BG/DGUV “GS-OA-15-04”.
  • Split force introduction thanks to multiple point fixing.
  • Suspension ring pivots 180°.
  • WLL possible up to 90° in load ring plane.

More information on the VRBS?

You’ll get it. Jump to our catalog and get to know this product in detail and in all available variants or sizes.
